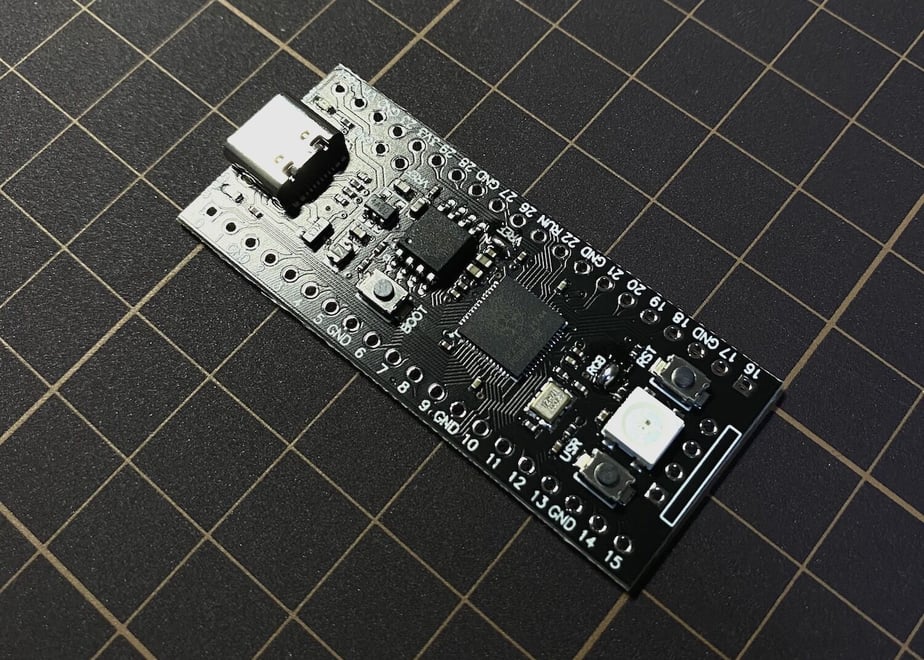

RP Pico互換ボード(USB-C/16MB/RP2040)ピンヘッダ付
RP2040 CPUを搭載したRaspberryPi Picoの互換ボードです。

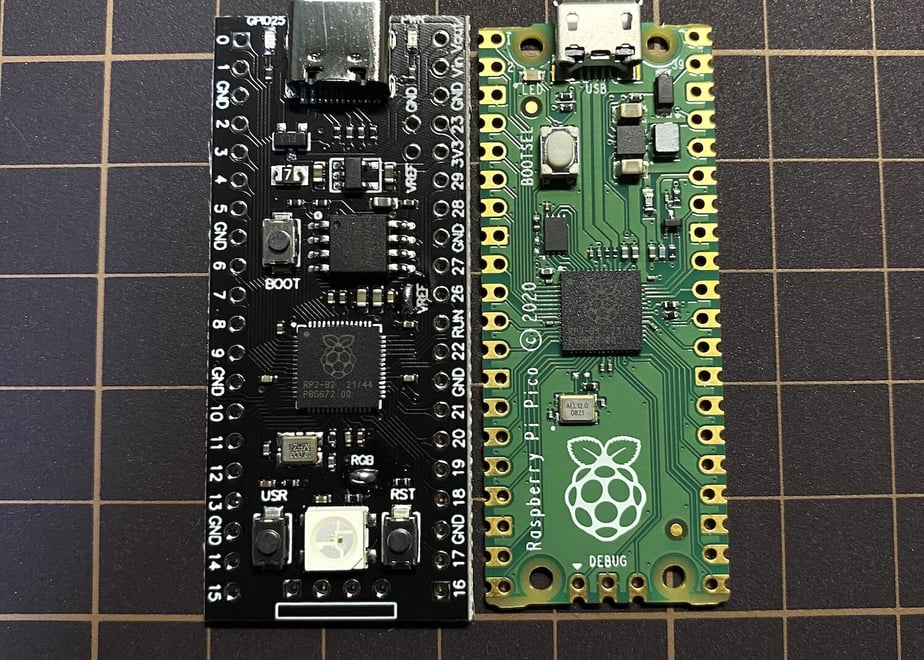

RaspberryPi Picoとは完全互換ではなく、以下の相違点があります。
USB-C端子に変更されています。
メモリが16MBとなります。

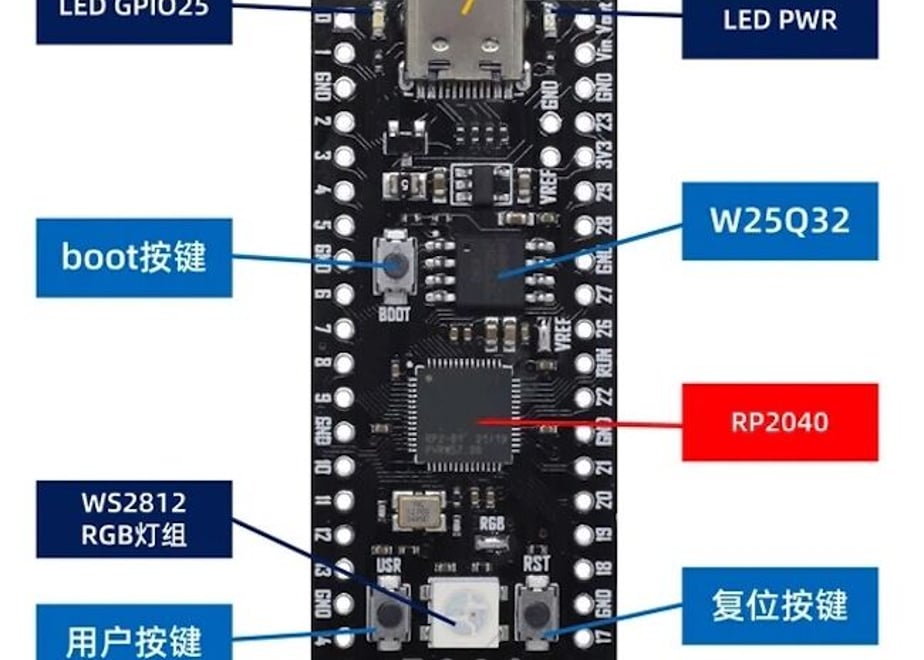

ボタンが増設されています。
RGB LEDが増設されています。

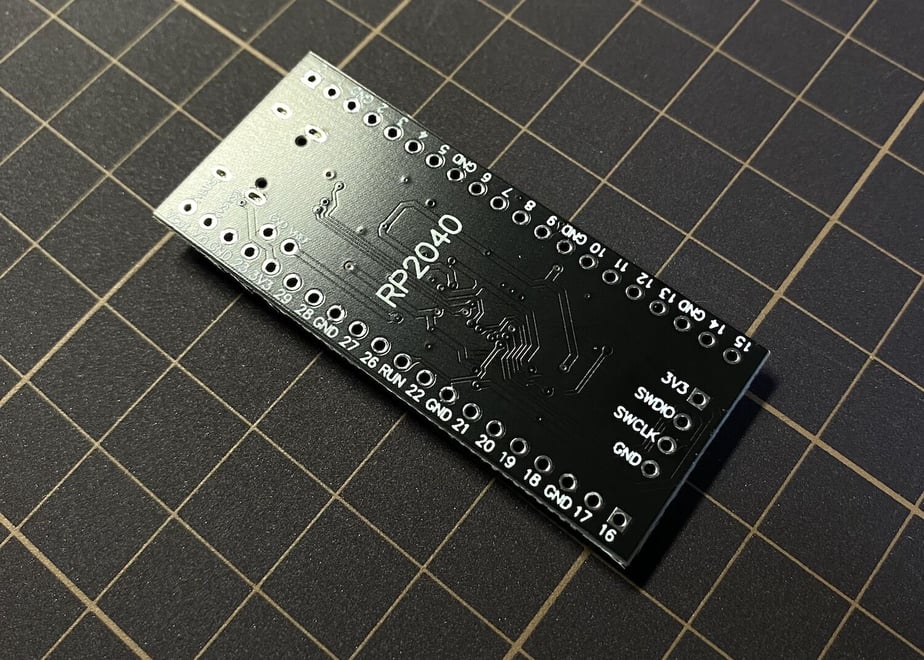

※基板厚は恐らく1.6mm(Picoより厚い)です。

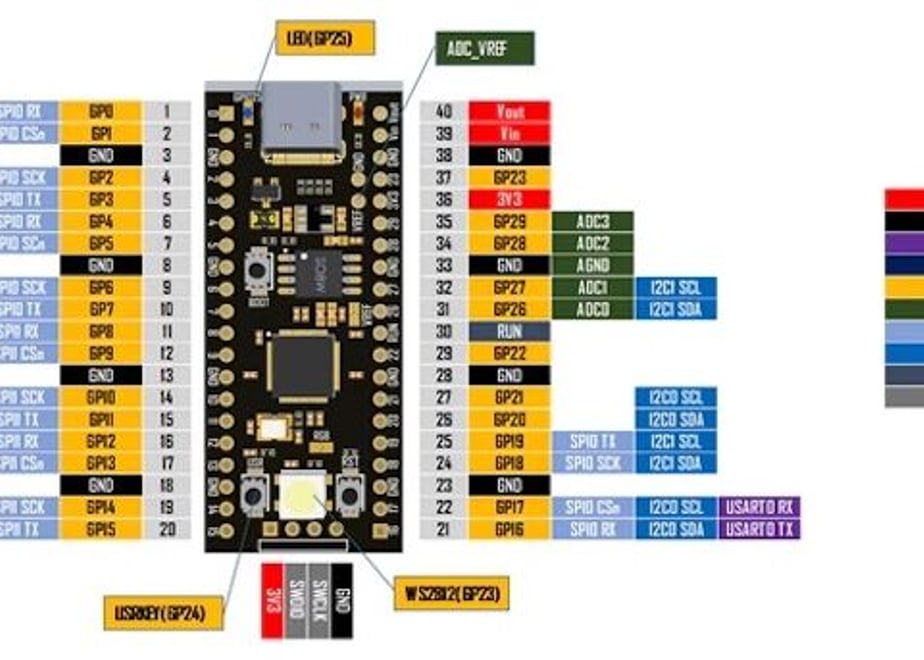

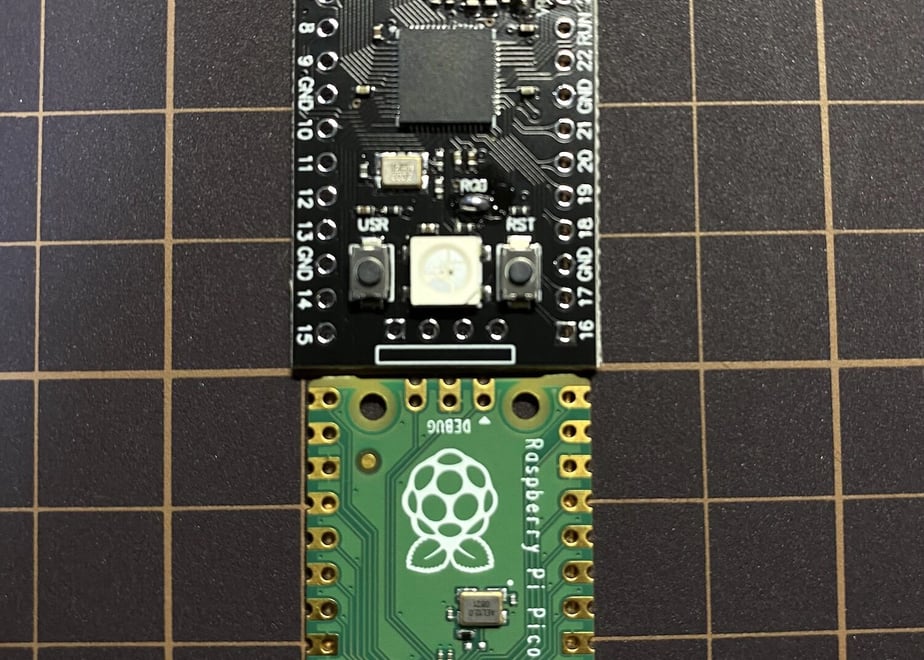

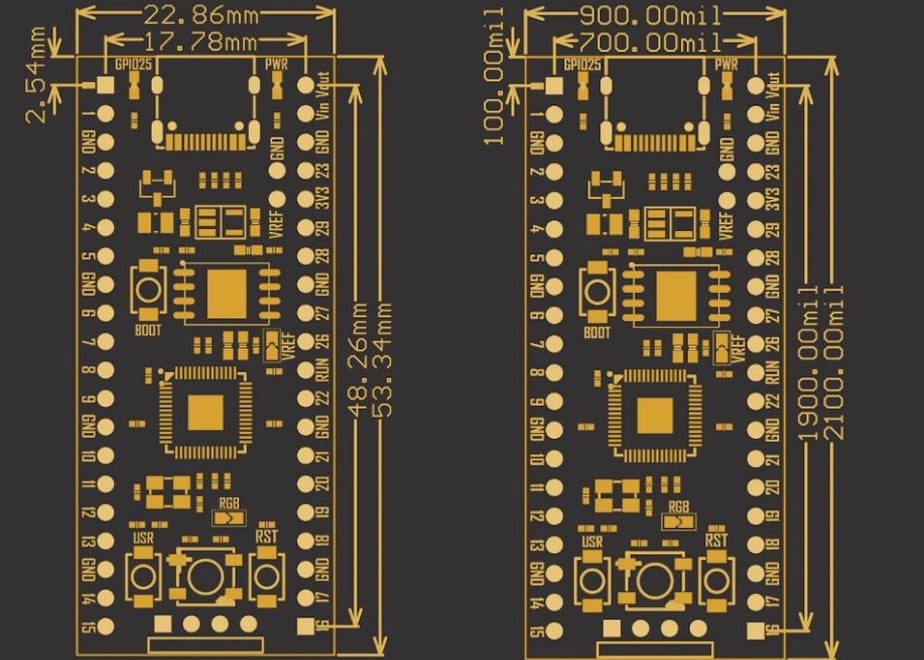

基板のサイズ、ピン配列もRaspberryPi Picoとは異なりますので、あらかじめご注意のうえ、ご購入ください。
※コンスルーは添付していません。

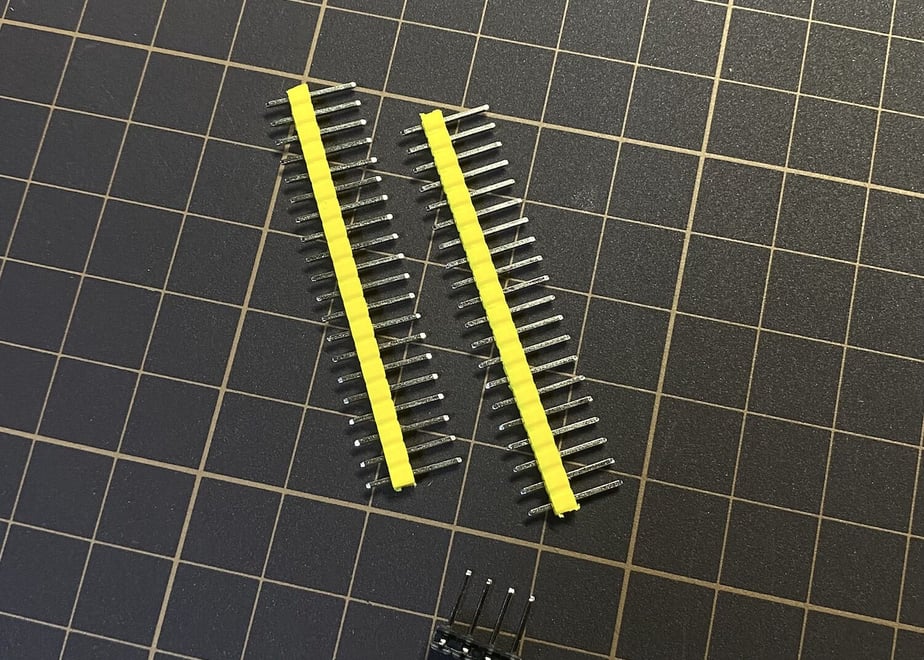

※画像のピンヘッダが添付されています。
Firmware Update Operation Process:
1. First, insert the USB cable with TYPE-C interface and connect the other end to the computer.
2. Press the BOOT button for a long time.
3. Press the RST button.
4. Release the BOOT button after 1 second.
5. The computer will automatically recognize it as a removable hard disk.
6. Copy (write) the file to be downloaded to the indicated removable hard disk and the core board will automatically reboot
■保証
納品時の破損や欠陥の場合に交換返品を承ります。
色やデザインなどイメージの相違による返品はお受けいたしかねます。
商品の使用方法に関する問い合わせには回答致しかねます。
あらかじめご了承ください。
※簡易包装での出荷となります。
